Q1. A Porter Governor has two flyweights each of mass 1.4kg, a central mass of 20kg and arms of length 210mm. At 300 rev/min the sleeve is just about to rise and the arms are at an angle of 35° to the vertical. Calculate EACH of the following:
(a) The friction force at the sleeve;
(b) The speed at which the sleeve would begin to fall.
Q1. A section of a hydraulic control system is shown in Fig Q7. The system is filled with an incompressible fluid. Movement of the input piston A causes the output pistons B and C to move. Piston C moves against a spring of stiffness 40kN/m. Piston B has no resistance to movement but reaches a rigid stop after 30mm travel. Piston A has a diameter of 40mm and pistons B and C are each 80mm diameter.
Calculate the total movement of the piston A, X when a force of 1200N is applied to it.

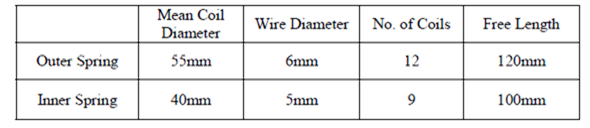

Q1. Two close-coiled helical springs of different length with the following dimensions are fitted concentrically in parallel on a flat horizontal surface:
The combined springs are subjected to a total load of 600N. Calculate EACH of the following:
(a) The compression of each spring;
(b) The load carried by each spring.
Note: Modulus of Rigidity for Spring Material = 80GN/m2.
